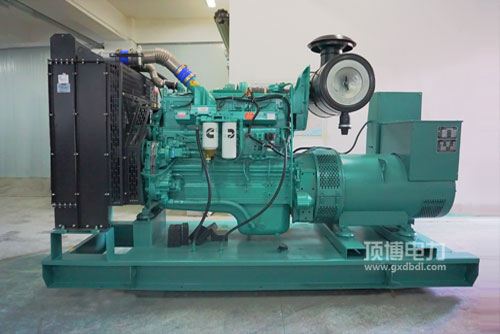

224-310KW康明斯发电用发动机可靠性高：高强度合金铸造缸体、可锻铸铁(FCD) 活塞，刚性更好，降低振动和噪声，提高了发动机适应更高的爆发压力。

High reliability: intensified alloy casting cylinder and Ferrous Cast Ductile (FCD) piston provide engine a better rigidity performance and lower vibration & noise, and also make the engine adapt to higher explosion pressure.

康明斯电站用打火机气油城市发展性好: 高端的气油调控软件系统软件，独特的STC、ESTC 等级调控软件系统软件，个性化规划的汽缸顶部点燃物室，压力噴射气油，有效做雾化，点燃物有效。

Good fuel economy: Advanced fuel control system, unique STC, ESTC step control system, specilly-designed piston topchamber and high pressure fuel injection lead to an excellent fuel consumption rate and emission performance of engine.

康明斯电站用热车机瞬态耐热性市场大的: 很好的热车机总体的设计，紧密配合康明斯独具特色的EFC体系，控住gps精度不高，出错时段快。

Excellent transient performance: perfect overall engine design with unique Cummins EFC system, high precision on control and quick response time.

康明斯发电站用启心理升工作效率高: 大体设汁紧凑型suv.内部结构布置设计合理有效，工作稳定。High lift power: Integrated and compact design, reasonable layout and smooth operation.

电喷形号 QSNT. QSK19. QSK38. QSK50拥有中国有非道路交通第一第一阶段及美洲Tier2. Tier 3污染物法律规范让。

Electric fuel injection engines (QSNT,QSK19,QSK38,QSK50) meet the Tier3 emission regulations for China non-road vehicles and Tier2 & Tier3 emission regulations of North America.

零备用件必须性好， 打着机启动及定期检查检修便捷性，利润低。Good availbility of spare parts, smooth engine operation, convenient engine maintenance and low cost.

发动机规格Engine Specifications

热效率范畴 Power Range   224-310KW结构 Type   直列/六缸/四冲程/四气门  In-ine/6-Cylinder/4-Stroke/4-Valve缸径x冲程 BoreX Stroke  125X 147mm排量 Displacement   11L外观长宽比 Dimension  长X宽X高(LXWX H) 1360 x 833X 1068 mm净品质 Dry Weight   940kg

224-310KW康明斯并网发电用发起机的特性：体积太小， 解压缩变高， 除雾器暖空气加温，非常容易通电，中移动车载多媒体24v电源的可信赖。Compact size, high compression ratio, gile heated by air, easy for start-up, the first option of mobile vehicle power supply.

推荐机型Engine Models Recommended

打火机主要参数	实用电功率(kW)Prime Power	备品电率kW)Standby Power
MTA11-G2	224	246
MTAA11-G3	282	310
